Are you a pipeline owner looking to remove liquids from your lines while also reducing the damaging effects of corrosion?
Innopipe removes liquids like produced water, hydrocarbon condensates and chemicals from natural gas lines.
The Innopipe separator differs from conventional designs by addressing the most common flow pattern in gas transmission/ gathering lines:
Annular flow.
We are less expensive to build and have much broader operating parameters than most gravity-inducing designs.
The Innopipe inline separator provide 99.9% separation efficiency.
Innopipe is designed to be piggable, and is built to ANY size and design code in the world including CSA, ASME, GOST, DNV, ANSI, DIN, CE, ISO, AS, CFR, PD and TUV. Innopipe also has an almost negligible pressure drop across it.
Innopipe offers real results
Results of using Innopipe include:
- Better pipeline integrity;
- Minimized corrosion issues;
- Reduced use of inhibitors;
- Black powder reduction/ elimination;
- Extended pipeline life;
- Liquid slug reduction & control;
- Reduced pigging;
- Improved gas plant and pipeline operations and predictability due to more consistent operations.
Innopipe applications are varied
Innopipe can be utilized in a wide variety of ways. Here are some examples:
- Compressor protection;
- River crossings and low points;
- Upstream of ultrasonic flow meters;
- General Pipeline liquid removal;
- Slug control and management;
- Cavern storage liquid removal;
- Compressor lube oil removal;
- Production separators;
- Black powder prevention/reduction/ permanent removal.
Below, we’ll discuss the specific ways that Innopipe is in use currently by our customers.
Actual Innopipes Installation Uses
Innopipe customers use it in a wide variety of ways and in different sectors. Here are some of the uses Innopipe customers benefit from their installs:
- Above and below ground piggable drip
- Major pipeline liquid removal
- HDPE pipeline liquid removal
- Well testing
- Ultrasonic metering upstream liquid removal
- Lubricant removal downstream of a compressor
- Liquid removal in utility distribution system
- In-facility liquids removal
- Gathering system for liquid unloading
- Feed stock separation
- Storage pool
- Inlet separator protector
- Underground gas supply network
- Gas transmission
- Temporary liquids removal station trial
How Innopipe works

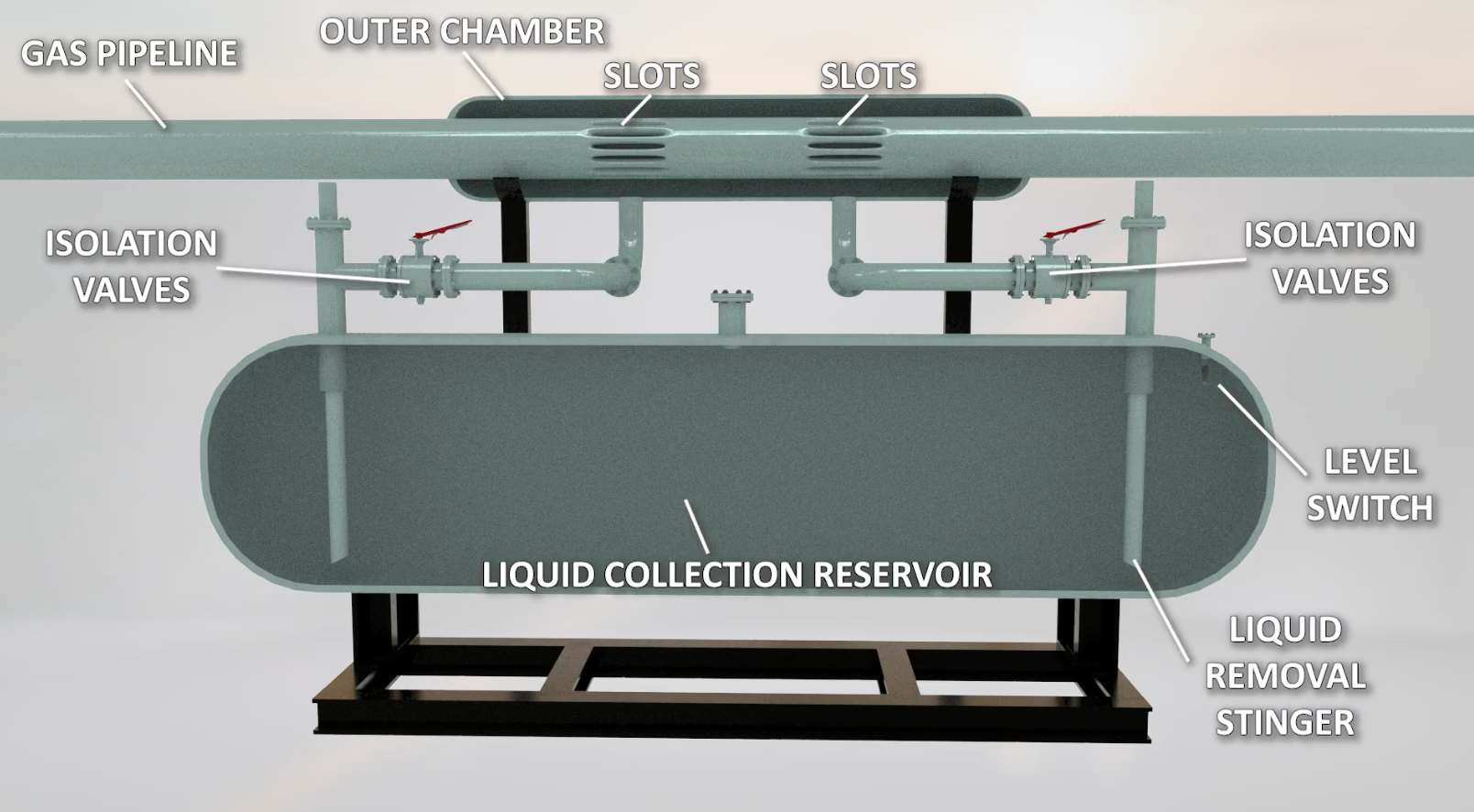

As the image below shows, Innopipe is a compact inline separator for natural gas systems that integrates seamlessly into your existing pipeline.
Key aspects of In
nopipe include isolation valves, level switch, liquid removal stinger and the liquid collection reservoir to collect the excessive liquids being removed.
Separation slots provide a natural liquid flow path allowing minimal pressure drop.

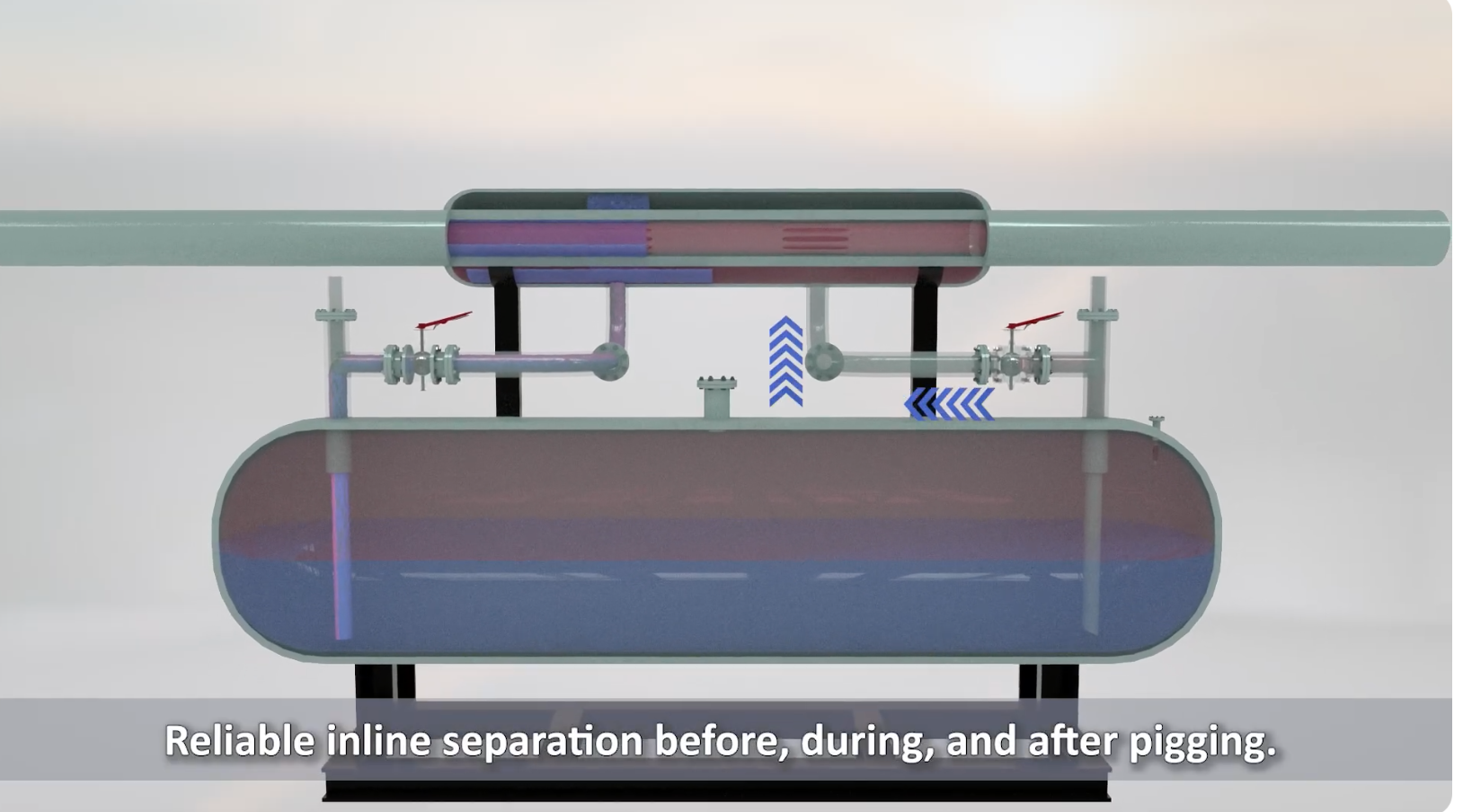

Liquids are continuously being removed from the gas stream guaranteeing a clean gas flow downstream as liquids drain to the reservoir. This collection vessel can be 2-phase or 3-phase.

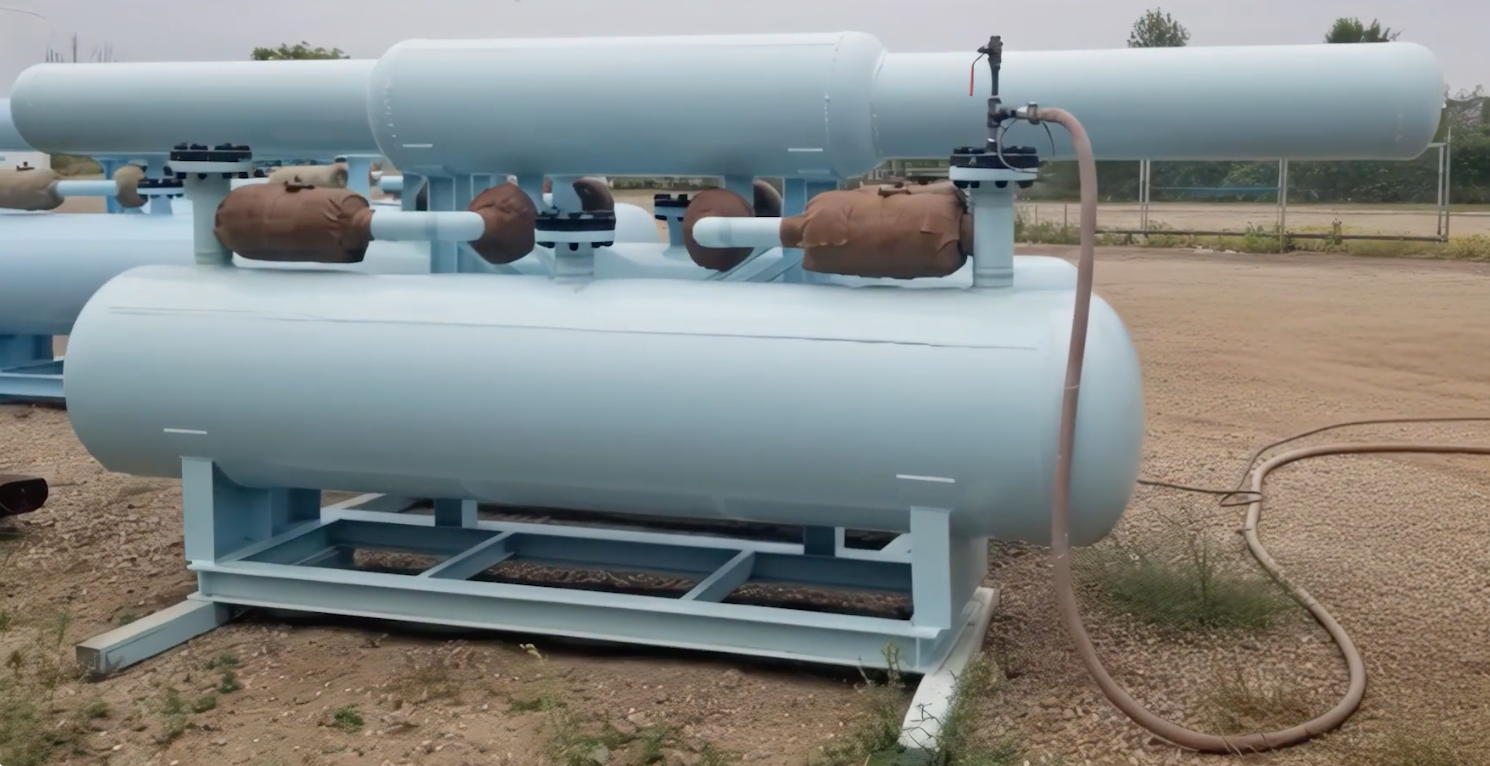

Innopipe can also be installed to meet your specific requirements. While we can install a single Innopipe unit, we can also install multiple units which we have already done for many customers
Innopipe gives liquid the off ramp it naturally seeks so it can get out of the way of your gas transmission highway.
Final thoughts
Dealing with slugging, corrosion, or expensive maintenance in your LNG, steam, or natural gas pipelines?
Innopipe makes it easy. Our inline separators (replace drips) remove liquids without the need for multiple steps, providing efficient performance.
Midstream operators in the USA, the Middle East, and beyond are already seeing the benefits. Why not you?
Please contact OilPro directly for all Innopipe inquiries.
OilPro Oilfield Production Equipment
1-403-215-3373
You can also fill out our questionnaire to help us learn more about your needs we can build the correct unit for you. You can fill out the form by clicking here.
