Pipeline infrastructure projects in Kuwait require liquid removal in gas gathering, processing and power station fuel gas systems.
In collaboration with world-class engineering firms, Innopipe designed and fabricated units ranging from 34”- 52” diameters. We built both the Innopipe separator, and liquids collection vessels to match each piggable drip location’s variable volumes produced.

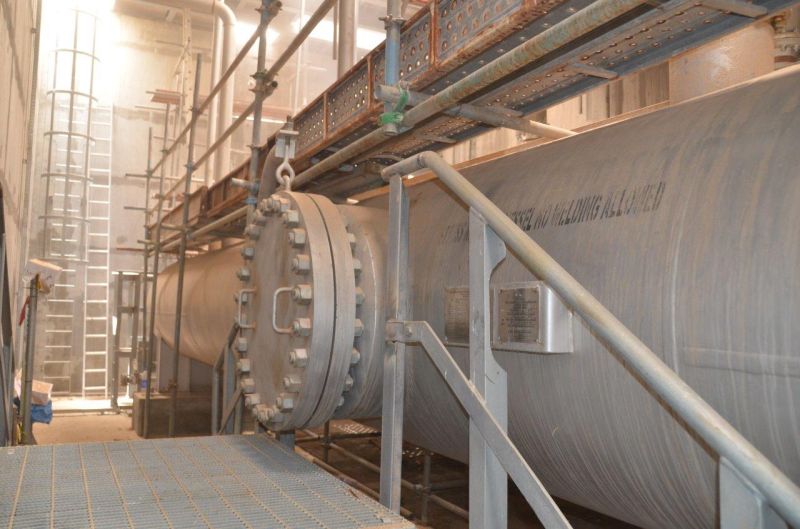

Local content is key for some projects, so Innopipe contracts local fabricators to expedite delivery and reduce logistics costs. Some systems were installed in concrete underground bunkers with extended stem valves enabling above ground operation.
Liquids collected by the ASME B 31.8 (pipeline code) smart pig compatible drip are collected in the sump vessel, built to ASME Sec. VIII Div. 1 (pressure vessel code) with a set of manways so the units can be coated and be periodically cleaned & inspected.
Example: 40” diameter Fuel Gas Delivery System
Package is designed for an over-design factor of 15% of the peak gas flow rate to achieve design flow rate based on data for lean / rich fuel gas. The system was also Post Weld Heat Treated, impact tested per applicable code as well as HIC tested in compliance with NACE MR0175 & ISO 15156 with controlled weld & parent metal hardness.
Advantages for this Application
• Liquid removal upstream of sonic meter
• Lower cost, faster fabrication & delivery
• Easy to transport to site
• Remove liquids before they form slugs
• Drip built to pipeline code
• Collector built to ASME vessel code
• Better performance than slug catchers
• Small footprint made bunker installation affordable, durable, & serviceable
BENEFITS
• Lower cost vs separator/slug system
• Built in-country, designed in Canada
• Piggable
• Designed to meet multiple design codes
• High pressure
• Low pressure drop
• Easy to use
• Bunker install
• Scalable for multiple line sizes
Final Thoughts
Want to eliminate slug catchers from your capital budget?
Tight space on your offshore platform?
Want to mitigate corrosion along the line at your line’s gate valve stations instead of at the end of the line when the corrosion has already happened?
If yes, you should call us to discuss Innopipe.
Canadian innovation at its finest! Innopipe is empowering energy producers globally to operate in a cleaner, smarter, and more efficient manner. This small yet powerful innovation is making a significant difference on a global scale.
Curious about how Innopipe can optimize your pipeline operations? Reach out to explore further possibilities!
