DEHY-8X4-SWEET-DESICCANT-285PSI-2 INCH I/O-NEW
8" x 4' Desiccant dehydration systems for fuel gas systems with wet gas.
Emissions Reduction Tech
We stock products throughout our entire Product Lines that can help reduce offsets, increase your systems overall sustainability and contribute to a net-positive ESG strategy. Ask us about these, and other, technologies to reduce your operation's carbon output.
PLANT-REFRIG-MINI-20 HP-500-1300MSCF/D-NO DEHY (PLT-7009)
PLANT-REFRIG-MINI-20 HP-500-1300MSCF/D
Condition fuel or flare gas:
OilPro's Liquid Stripper design drops, captures, and monetizes typical flare stack or tank vent "wet" gas liquids. The remaining conditioned gas is OEM spec fuel for on-site generation equipment or delivers a clean burning flare. Power use includes site needs, grid sales, or data operations. Valuable condensate is monetized and engines run optimally.
Condition injection gas:
The Micro Refrigeration Unit strips liquids and conditions injection gas for optimal results. Monetize condensate while improving injection gas. Results include better injection performance and fewer downhole equipment issues caused by condensates.
Feature overview:
- Minimal package footprint with compact, engineered components
- Simple, durable refrigeration system, serviceable by HVAC technicians
- Refrigerant is safer than propane, reduces on-site hazards
- Low temp. separator (LTS) for improved separation
- High quality, common brand component metallurgy and trim
Liquid Recovery Unit-20 HP-New
Designed for 500-1300 MSCF/d total flow (Gas composition dependent)
Summary:
-40 deg F capable system
Skid Mounted, c.w.:
Inlet coalescing vessel c.w.
Filter
Packaged with
Controls
H2S compatible materials
Two Stainless steel heat exchangers
Liquid dump valve
2" SCH 40 inlet and outlet piping for gas
1" SCH 40 Product outlet
Electrical:
Single Phase
480 Volt
Major Component Description:
AC-1000: Refrigerant Condenser
1/2" tubing c.w.
fins for optimized heat dispersion
V-1: Inlet Knockout/Coalescer combination vessel
Custom sized for application.
MAWP: 245 psig @ 250 deg F
MDMT: -40 deg F @ 245 psig
Coalescer, custom design
ASME Sec. VIII Div. 1 design
NB Registered
C-100: Refrigeration Unit
Scroll compressor
MAWP: 415+ PSIG @ -40 deg F
Refrigerant 448A
20 HP/ ?? A/ 60 Hz/ single phase
V-100: Receiver:
Sized for application
MAWP 450 PSIG
6' x 18"
E-1: Gas/Gas Exchanger
MAWP: 675 PSIG
~ ??+ BTU/hr design rate
316 SS construction
E2: Chiller
MAWP 675 PSIG
316 SS construction
E3: Pre-Cooler
Liquid to gas exchanger (Refrigerant)
MAWP 675 PSIG
tube and tube configuration
V2: Cold Separator
875 PSIG
~24" x 6' s/s
304 SS tubes, 0.125" walls
Customer to supply:
Option:
1.
Inlet filter, mounted to skid c.w. bypass, filter element.
OilPro's Liquid Stripper design drops, captures, and monetizes typical flare stack or tank vent "wet" gas liquids. The remaining conditioned gas is OEM spec fuel for on-site generation equipment or delivers a clean burning flare. Power use includes site needs, grid sales, or data operations. Valuable condensate is monetized and engines run optimally.
Condition injection gas:
The Micro Refrigeration Unit strips liquids and conditions injection gas for optimal results. Monetize condensate while improving injection gas. Results include better injection performance and fewer downhole equipment issues caused by condensates.
Feature overview:
- Minimal package footprint with compact, engineered components
- Simple, durable refrigeration system, serviceable by HVAC technicians
- Refrigerant is safer than propane, reduces on-site hazards
- Low temp. separator (LTS) for improved separation
- High quality, common brand component metallurgy and trim
Liquid Recovery Unit-20 HP-New
Designed for 500-1300 MSCF/d total flow (Gas composition dependent)
Summary:
-40 deg F capable system
Skid Mounted, c.w.:
Inlet coalescing vessel c.w.
Filter
Packaged with
Controls
H2S compatible materials
Two Stainless steel heat exchangers
Liquid dump valve
2" SCH 40 inlet and outlet piping for gas
1" SCH 40 Product outlet
Electrical:
Single Phase
480 Volt
Major Component Description:
AC-1000: Refrigerant Condenser
1/2" tubing c.w.
fins for optimized heat dispersion
V-1: Inlet Knockout/Coalescer combination vessel
Custom sized for application.
MAWP: 245 psig @ 250 deg F
MDMT: -40 deg F @ 245 psig
Coalescer, custom design
ASME Sec. VIII Div. 1 design
NB Registered
C-100: Refrigeration Unit
Scroll compressor
MAWP: 415+ PSIG @ -40 deg F
Refrigerant 448A
20 HP/ ?? A/ 60 Hz/ single phase
V-100: Receiver:
Sized for application
MAWP 450 PSIG
6' x 18"
E-1: Gas/Gas Exchanger
MAWP: 675 PSIG
~ ??+ BTU/hr design rate
316 SS construction
E2: Chiller
MAWP 675 PSIG
316 SS construction
E3: Pre-Cooler
Liquid to gas exchanger (Refrigerant)
MAWP 675 PSIG
tube and tube configuration
V2: Cold Separator
875 PSIG
~24" x 6' s/s
304 SS tubes, 0.125" walls
Customer to supply:
Option:
1.
Inlet filter, mounted to skid c.w. bypass, filter element.
POWERGEN CAP3-M - (PG-7703)
Qnergy - Compressed Air Pneumatics Skid Package including PowerGen 5650
Qnergy - Compressed Air Pneumatics Skid Package including PowerGen 5650 (-40 deg C)
The CAP3-M skid air package for pneumatic operation at wellpads and production facilities.
CAP3 is the most reliable solution in the marketplace.
Coupled with the 100% duty-rated PowerGen, the Stirling based generator provides continuous power (24/7/365) to all electrical components included in this skid package.
We are confident the CAP3-M skid air package provides reliable Instrument Air for Pneumatics as well as power for your specific loads.
1. GENERAL INFORMATION - CAP3-M
Pneumatic devices vent spent gas directly into the air reducing the clean fuel advantages natural gas offers.
The Compressed Air Pneumatics (CAP3-M) skid package is designed for rugged and remote operation in any climate condition, from desert to tundra to mountaintop. The low-maintenance CAP3-M system combusts the normally-vented methane at much greater efficiency than any internal combustion engine, while economically providing reliable electric power and clean dry instrument air for pneumatic devices.
The CAP3-M skid is built around the PowerGen working seamlessly with a range of fuel supplies, including; natural gas, Propane, Ethane or associated gas streams.
The CAP3-M skid package is built to meet strict quality standards. The integrated components and controls are all designed to maximize the customer's ability to control and monitor their skid air package while minimizing maintenance and monitoring related site visits.
2. COMPRESSED AIR PNEUMATICS SKID (CAP3-M)
2.1. Technical Information
The CAP3-M skid air package will operate under the following technical specifications:
• Oil-less, low maintenance Duplex Air Compressor
• Integrated Air Dryer with over 25 deg C dew point suppression
• Air available to customer: Continuous 11 scfm @100 psi
• Auxiliary AC Power: 1000 W / 240 VAC at a flow rate of 11 scfm @100 PSI
NOTE: If less air is used, the system will have more power available.
2.2. CAP3-M Skid Package
CAP3-M package will consist of the following:
• Skid:
42" x 86" c/w
checker plate floor & (2) rail extension for installation of the Qnergy unit and separator.
• Enclosure Type:
Fiberglass with
stainless steel hardware
(147" H x 70.7" L x 65.25" W)
• Insulation:
2" R14 PU Foam
• Doors:
2 only double access doors in front for service.
• Ventilation:
Gravity louver with rain hood, bug screen
• Heater:
1000-watt c/w thermostat
• Exhaust fan:
524 cfm with thermostat
• Dryer Type:
Desiccant
• 80 Gallon Air Tank
• 2nd VFD
(dedicated to second compressor head)
• Line Reactors
to protect system (2nd VFD)
• Package flow meter c/w
summary display for volume of air produced in operation
• Transfer switch inside of HMI control panel
• Flow monitoring and summary directly to the HMI display
• Modbus communication to the HMI
2.3. ELECTRICAL SUPPLY AND INSTALL (Doghouse)
• Connection of Duplex IA Package Power
• Connection of 5.6 kW Generator
120V/240V
• Connection of 120VAC Exhaust Fan
• Transfer switch for an external backup generator
• NEMA 4 Compressor Distribution panel c/w
5.7" HMI
Heater
• Oil-less low maintenance Duplex Air Compressor
• Filter/Dryers
• Dual 10 HP 230 VAC VFD c/w
3% Line Reactor
• All RA Conduit and Wire
• All Electrical Lamacoids
• SmartView Remote Monitoring Package
• Distribution Panel (heated)
has space available (bottom) for:
up to four x 120 AH AGM batteries and
24VDC rectifier/charger - Included
2.4. PNEUMATICS
• Cabinet package
compressed air lines
all in braided hydraulic hose for temperature and weathering protection
• Fuel Gas Scrubber: Qnergy Gas Conditioning Unit (GCU)
protects against liquids in gas inlet
• 120 VAC Heat Trace Power Kit
• 120 VAC Heat Trace End Kit
• All 5W/Ft 120VAC heat trace
3. POWERGEN - PG5650
Max. Output Power
5.6 kW
Max. Fuel Consumption (Natural Gas)
112 cubic m/day (3,964 cu.ft/day)
Max. Fuel Consumption (Propane)
166 l/day (44 Gal./day)
Generator Design Life
10 - 15 Years
Fuel Type
Gaseous Fuels:
Natural Gas, LPG,Propane, Wellhead Gas
Area Classification
General Purpose - (Non-Hazardous)
Fuel Pressure Range
3 - 50 PSI (Natural Gas)
2-10 PSI (Propane)
Ambient Temperature Operation
-40 deg C to 50 deg C
(-40 deg F to 122 deg F)
Cabinet Electrical Rating
IP54
Electrical Configurations
120 / 240 VAC Split Phase
Output A:120 VAC 60Hz
Output B:120 VAC 60Hz
3 Wire: L1, L2 & Common/Neutral
Electrical Configuration "B"
120 / 240 VAC 2 Phase
Output A:120 VAC 60Hz
Output B:240 VAC 60Hz
3 Wire: L1, L2 & Common/Neutral
Certification
cETLus (UL2200)
(CSA C22.2#100/C22.2#14)e3w
Dry Weight
392 kg
(866 lbs)
3.1. POWERGEN -COOLING SYSTEM
The PowerGen cooling system is designed to reject remaining unused cycle heat from the PowerGen in a reliable and controlled manner.
With two highly reliable sequentially operated fans, it has built-in redundancy as well as a robust industrial grade radiator.
The cooling hardware couples with the PowerGen heat management system to not only stabilize the generator at its optimal operating temperature but also make heat available to an onsite heat application, such as the Qnergy Glycol Heat Trace module.
OilPro also offers a mini line heater option should that be of interest.
3.2. POWERGEN - COMMUNICATIONS
The PowerGen configuration integrates on-board ModBus serial interface as well as set of discrete signals in dry-contacts form.
Both serial and discrete interfaces can be wired to onsite SCADA or with communication devices connected to control/monitoring systems through local internet, cellular or satellite transmitters.
*The following signals have been provided as set of discrete signals:
CONTROL SIGNALS:
• START / STOP
- the signal depend on state starts or stops the generator.
- To comply to fail safe requirement the open contacts (circuitry) acts as "stop"
• LOAD DISCONNECT - the signal controls the actual physical connection of the Power output.
- The open contacts of the signal circuitry lead to output power contactor to disconnect the generator output as well as the generator system battery from customer loads.
MONITORING SIGNALS:
• ON - the signal reflects if the generator is up and running
• FAULT - the signal reflects if the generator is faulty
• OUT OF FUEL - the signal reflects that the generator is available, but no fuel is present at inlet of the generator fuel port
• POWER AVAILABLE - the generator is up and running developing required power regardless if customer load is connected
• LOAD DISCONNECTED - the signal reflects if the power contactor is open regardless of state of the generator
• FAIL TO IGNITE - the signal reflects if the start attempt was successful or if combustion/ignition components are healthy
• FLAME OUT
- the signal reflects if there was unexpected loss of combustion.
All signals described above as well as many more are available through Serial Interface (MOD bus) as well (the complete list and address table are available separately).
3.3. POWERGEN - MAINTENANCE REQUIREMENTS
OilPro-supplied PowerGen Stirling Generator systems are designed to operate continuously without interruption for 12-month periods over the life span of the generator.
Continued safe and efficient operation of the PowerGen is ensured with an annual inspection made by a trained service technician who will verify that air filter and cooling system are functioning as designed.
The annual recommended inspection will take approximately one (1) hour at site per year.
3.4. POWERGEN - CONSTRUCTION AND PROTECTION
The PowerGen enclosure is designed for outdoor, unsheltered operation.
The standard enclosure is manufactured of Carbon Steel and it is powder coated.
3.5. STOCK DRAWINGS, CERTIFICATION AND DOCUMENTATION
included with OilPro's standard Document Control package (as described in our Terms and Conditions below), we provide:
• General Arrangement Drawing
• P&ID Drawing
• O&M Manuals
• Electric Block Diagram
• Vessel U1a form
• SPE-1000 inspection and approval
• CSA certification
Loading, offloading on site and external piping and electrical interconnections from skid provided by others.
The CAP3-M skid air package for pneumatic operation at wellpads and production facilities.
CAP3 is the most reliable solution in the marketplace.
Coupled with the 100% duty-rated PowerGen, the Stirling based generator provides continuous power (24/7/365) to all electrical components included in this skid package.
We are confident the CAP3-M skid air package provides reliable Instrument Air for Pneumatics as well as power for your specific loads.
1. GENERAL INFORMATION - CAP3-M
Pneumatic devices vent spent gas directly into the air reducing the clean fuel advantages natural gas offers.
The Compressed Air Pneumatics (CAP3-M) skid package is designed for rugged and remote operation in any climate condition, from desert to tundra to mountaintop. The low-maintenance CAP3-M system combusts the normally-vented methane at much greater efficiency than any internal combustion engine, while economically providing reliable electric power and clean dry instrument air for pneumatic devices.
The CAP3-M skid is built around the PowerGen working seamlessly with a range of fuel supplies, including; natural gas, Propane, Ethane or associated gas streams.
The CAP3-M skid package is built to meet strict quality standards. The integrated components and controls are all designed to maximize the customer's ability to control and monitor their skid air package while minimizing maintenance and monitoring related site visits.
2. COMPRESSED AIR PNEUMATICS SKID (CAP3-M)
2.1. Technical Information
The CAP3-M skid air package will operate under the following technical specifications:
• Oil-less, low maintenance Duplex Air Compressor
• Integrated Air Dryer with over 25 deg C dew point suppression
• Air available to customer: Continuous 11 scfm @100 psi
• Auxiliary AC Power: 1000 W / 240 VAC at a flow rate of 11 scfm @100 PSI
NOTE: If less air is used, the system will have more power available.
2.2. CAP3-M Skid Package
CAP3-M package will consist of the following:
• Skid:
42" x 86" c/w
checker plate floor & (2) rail extension for installation of the Qnergy unit and separator.
• Enclosure Type:
Fiberglass with
stainless steel hardware
(147" H x 70.7" L x 65.25" W)
• Insulation:
2" R14 PU Foam
• Doors:
2 only double access doors in front for service.
• Ventilation:
Gravity louver with rain hood, bug screen
• Heater:
1000-watt c/w thermostat
• Exhaust fan:
524 cfm with thermostat
• Dryer Type:
Desiccant
• 80 Gallon Air Tank
• 2nd VFD
(dedicated to second compressor head)
• Line Reactors
to protect system (2nd VFD)
• Package flow meter c/w
summary display for volume of air produced in operation
• Transfer switch inside of HMI control panel
• Flow monitoring and summary directly to the HMI display
• Modbus communication to the HMI
2.3. ELECTRICAL SUPPLY AND INSTALL (Doghouse)
• Connection of Duplex IA Package Power
• Connection of 5.6 kW Generator
120V/240V
• Connection of 120VAC Exhaust Fan
• Transfer switch for an external backup generator
• NEMA 4 Compressor Distribution panel c/w
5.7" HMI
Heater
• Oil-less low maintenance Duplex Air Compressor
• Filter/Dryers
• Dual 10 HP 230 VAC VFD c/w
3% Line Reactor
• All RA Conduit and Wire
• All Electrical Lamacoids
• SmartView Remote Monitoring Package
• Distribution Panel (heated)
has space available (bottom) for:
up to four x 120 AH AGM batteries and
24VDC rectifier/charger - Included
2.4. PNEUMATICS
• Cabinet package
compressed air lines
all in braided hydraulic hose for temperature and weathering protection
• Fuel Gas Scrubber: Qnergy Gas Conditioning Unit (GCU)
protects against liquids in gas inlet
• 120 VAC Heat Trace Power Kit
• 120 VAC Heat Trace End Kit
• All 5W/Ft 120VAC heat trace
3. POWERGEN - PG5650
Max. Output Power
5.6 kW
Max. Fuel Consumption (Natural Gas)
112 cubic m/day (3,964 cu.ft/day)
Max. Fuel Consumption (Propane)
166 l/day (44 Gal./day)
Generator Design Life
10 - 15 Years
Fuel Type
Gaseous Fuels:
Natural Gas, LPG,Propane, Wellhead Gas
Area Classification
General Purpose - (Non-Hazardous)
Fuel Pressure Range
3 - 50 PSI (Natural Gas)
2-10 PSI (Propane)
Ambient Temperature Operation
-40 deg C to 50 deg C
(-40 deg F to 122 deg F)
Cabinet Electrical Rating
IP54
Electrical Configurations
120 / 240 VAC Split Phase
Output A:120 VAC 60Hz
Output B:120 VAC 60Hz
3 Wire: L1, L2 & Common/Neutral
Electrical Configuration "B"
120 / 240 VAC 2 Phase
Output A:120 VAC 60Hz
Output B:240 VAC 60Hz
3 Wire: L1, L2 & Common/Neutral
Certification
cETLus (UL2200)
(CSA C22.2#100/C22.2#14)e3w
Dry Weight
392 kg
(866 lbs)
3.1. POWERGEN -COOLING SYSTEM
The PowerGen cooling system is designed to reject remaining unused cycle heat from the PowerGen in a reliable and controlled manner.
With two highly reliable sequentially operated fans, it has built-in redundancy as well as a robust industrial grade radiator.
The cooling hardware couples with the PowerGen heat management system to not only stabilize the generator at its optimal operating temperature but also make heat available to an onsite heat application, such as the Qnergy Glycol Heat Trace module.
OilPro also offers a mini line heater option should that be of interest.
3.2. POWERGEN - COMMUNICATIONS
The PowerGen configuration integrates on-board ModBus serial interface as well as set of discrete signals in dry-contacts form.
Both serial and discrete interfaces can be wired to onsite SCADA or with communication devices connected to control/monitoring systems through local internet, cellular or satellite transmitters.
*The following signals have been provided as set of discrete signals:
CONTROL SIGNALS:
• START / STOP
- the signal depend on state starts or stops the generator.
- To comply to fail safe requirement the open contacts (circuitry) acts as "stop"
• LOAD DISCONNECT - the signal controls the actual physical connection of the Power output.
- The open contacts of the signal circuitry lead to output power contactor to disconnect the generator output as well as the generator system battery from customer loads.
MONITORING SIGNALS:
• ON - the signal reflects if the generator is up and running
• FAULT - the signal reflects if the generator is faulty
• OUT OF FUEL - the signal reflects that the generator is available, but no fuel is present at inlet of the generator fuel port
• POWER AVAILABLE - the generator is up and running developing required power regardless if customer load is connected
• LOAD DISCONNECTED - the signal reflects if the power contactor is open regardless of state of the generator
• FAIL TO IGNITE - the signal reflects if the start attempt was successful or if combustion/ignition components are healthy
• FLAME OUT
- the signal reflects if there was unexpected loss of combustion.
All signals described above as well as many more are available through Serial Interface (MOD bus) as well (the complete list and address table are available separately).
3.3. POWERGEN - MAINTENANCE REQUIREMENTS
OilPro-supplied PowerGen Stirling Generator systems are designed to operate continuously without interruption for 12-month periods over the life span of the generator.
Continued safe and efficient operation of the PowerGen is ensured with an annual inspection made by a trained service technician who will verify that air filter and cooling system are functioning as designed.
The annual recommended inspection will take approximately one (1) hour at site per year.
3.4. POWERGEN - CONSTRUCTION AND PROTECTION
The PowerGen enclosure is designed for outdoor, unsheltered operation.
The standard enclosure is manufactured of Carbon Steel and it is powder coated.
3.5. STOCK DRAWINGS, CERTIFICATION AND DOCUMENTATION
included with OilPro's standard Document Control package (as described in our Terms and Conditions below), we provide:
• General Arrangement Drawing
• P&ID Drawing
• O&M Manuals
• Electric Block Diagram
• Vessel U1a form
• SPE-1000 inspection and approval
• CSA certification
Loading, offloading on site and external piping and electrical interconnections from skid provided by others.
POWERGEN-5650-CAN
PowerGen 5650
Unit will be configured per filled out unique Qnergy Site Survey.
Please specify at time of order:
Output Configurations available
1.- 120/240 VAC Split Phase
OUTPUT:
- Output A: 120 VAC 60 Hz
- Output B: 120 VAC 60 Hz
PHASE ANGLE:
- A: 0 deg.
- B: 180 deg.
CONNECTION:
- 3 wire: L1, L2 & Common/Neutral
MAX POWER @ 85 DEG F/120 DEG F:
- 5.65 kW/5.1kW
2. "A"
CONFIGURATION:
+-HVDC (+-332 to +-365)
OUTPUT:
- Output A: + HVDC
- Output B: - HVDC
PHASE ANGLE:
- A: 0 deg.
- B: 180 deg.
CONNECTION:
- 3 wire: +ve, -ve & Common
MAX POWER @ 85 DEG F/120 DEG F:
- 5.65 kW/5.1kW
3. "B"
CONFIGURATION:
- 120/240 VAC 2 Phase
OUTPUT:
- Output A: 120 VAC 60 Hz
- Output B: 240 VAC 50/60 Hz
PHASE ANGLE:
- A: 0 deg.
- B: 0 deg.
CONNECTION:
- 3 wire: L1, L2 & Common/Neutral
MAX POWER @ 85 DEG F/120 DEG F:
- 5.65 kW/5.1kW
4. "C"
CONFIGURATION:
- 240/480V split Phase
OUTPUT:
- Output A: 240 VAC 50/60 Hz
- Output B: 240 VAC 50/60 Hz
PHASE ANGLE:
- A: 0 deg.
- B: 180 deg.
CONNECTION:
- 3 wire: L1, L2 & Common/Neutral
MAX POWER @ 85 DEG F/120 DEG F:
- 5.65 kW/5.1kW
4. "D"
CONFIGURATION:
- +-HVDC/120VAC
OUTPUT:
- Output A: +HVDC
- Output B: 120 VAC 60 Hz
PHASE ANGLE:
- A: 0 deg.
- B: 0 deg.
CONNECTION:
- 3 wire: +ve, L2 & Common
MAX POWER @ 85 DEG F/120 DEG F:
- 5.65 kW/5.1kW
4. "E"
CONFIGURATION:
- +-HVDC/240VAC
OUTPUT:
- Output A: +HVDC
- Output B: 240 VAC 50/60 Hz
PHASE ANGLE:
- A: 0 deg.
- B: 0 deg.
CONNECTION:
- 3 wire: +ve, L2 & Common
MAX POWER @ 85 DEG F/120 DEG F:
- 5.65 kW/5.1kW […]
There are currently no details for this product.
POWERGEN-GHT (PG-7720)
Glycol Heat Trace Module for PowerGen. Over 50,000 BTU/hr of heat available No external power supply required User selectable return temperature Ultra-reliable rotary vane circulating pumpdent glycol reservoir full monitoring and control ideal for remote locations with fuel gas delivery challenges. […]
Glycol Heat Trace Module for PowerGen.
Over 50,000 BTU/hr of heat available
No external power supply required
User selectable return temperature
Ultra-reliable rotary vane circulating pump
Independent glycol reservoir
full monitoring and control
ideal for remote locations with fuel gas delivery challenges.
Over 50,000 BTU/hr of heat available
No external power supply required
User selectable return temperature
Ultra-reliable rotary vane circulating pump
Independent glycol reservoir
full monitoring and control
ideal for remote locations with fuel gas delivery challenges.
SOLARIS-3000W-800AH-SCADA-SOLAR HYBRID
Overview:
SOLARIS stands for
• Solar-powered
• Off-grid
• Low temperature
• Advanced
• Reliable
• Integrated
•ARIS 3000/4000/6000/12000 is a Hybrid Powered System designed to provide 24 VDC and 120 VAC power for critical Oil, Gas, Mining, and Telecommunications Applications.
PV / Solar Panel Array:
SOLARIS systems include Solar/Photovoltaic (PV) as the Primary Power Source to charge:
- a large, expandable DC battery rack and bank (24 VDC) and,
- Solar charge regulator system to match modular architecture which adapts to solar gathering capacity, autonomy requirements, backup genset capcity & maintenance interval requirements easily, even if future growth is to be accommodated.
SOLARIS Inverter /Charger system
120/240 VAC loads is powered via the modular SOLARIS inverter system.
24 VDC Battery Bank
A modular 24VDC AGM Battery Bank provides autonomous power.
The battery bank is also modular and charged rapidly by the charger when/as solar/generator/utility power is available.
Generator
An LPG generator system to charge the battery bank during time of higher than normal power loads.
Periods of lower solar insolation such as December and January can coincide with lower temperatures, requiring greater electrical needs from heat tracing circuits.
SOLARIS is designed to run on natural gas, propane, Diesel, or gasoline, as site requires.
For ultimate reliability in remote areas, OilPro recommends the PowerGen, per https://oilpro.ca/product/powergen/
SOLARIS Monitoring and Control
SatSCADA is a 24/7 cloud-based online monitoring portal with multi-platform compatible viewing access.
This Calgary designed system is a proven, widely-adopted telemetry suite in use across 100's of retail and commercial backup power installations in North America.
1.0
SOLARIS 3000 enclosure and Heavy Duty skid base
All equipment is housed in a rugged 8'L x 4'W and 6'H custom skid on C6 Channel.
Enclosure includes:
Battery rack (with expansion options)
Integrated gas or electric heating system matched to enclosure heat and venting requirements.
Adjustable, weatherproof HVAC system to accommodate:
- air exchanges for generator
- ventilation for electrical components and charging system
- humidity control
- incorporates snow & animal ingress proofing
2.0
Skid:
- 4 integrated lifting lugs
- 4 access doors
- 1 access panel
- sloped roof for snow shedding
- Junction boxes
Energy-conserving HVAC design to ensure environment is optimized for charging and cold starts

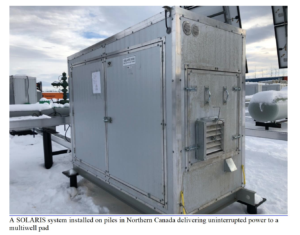

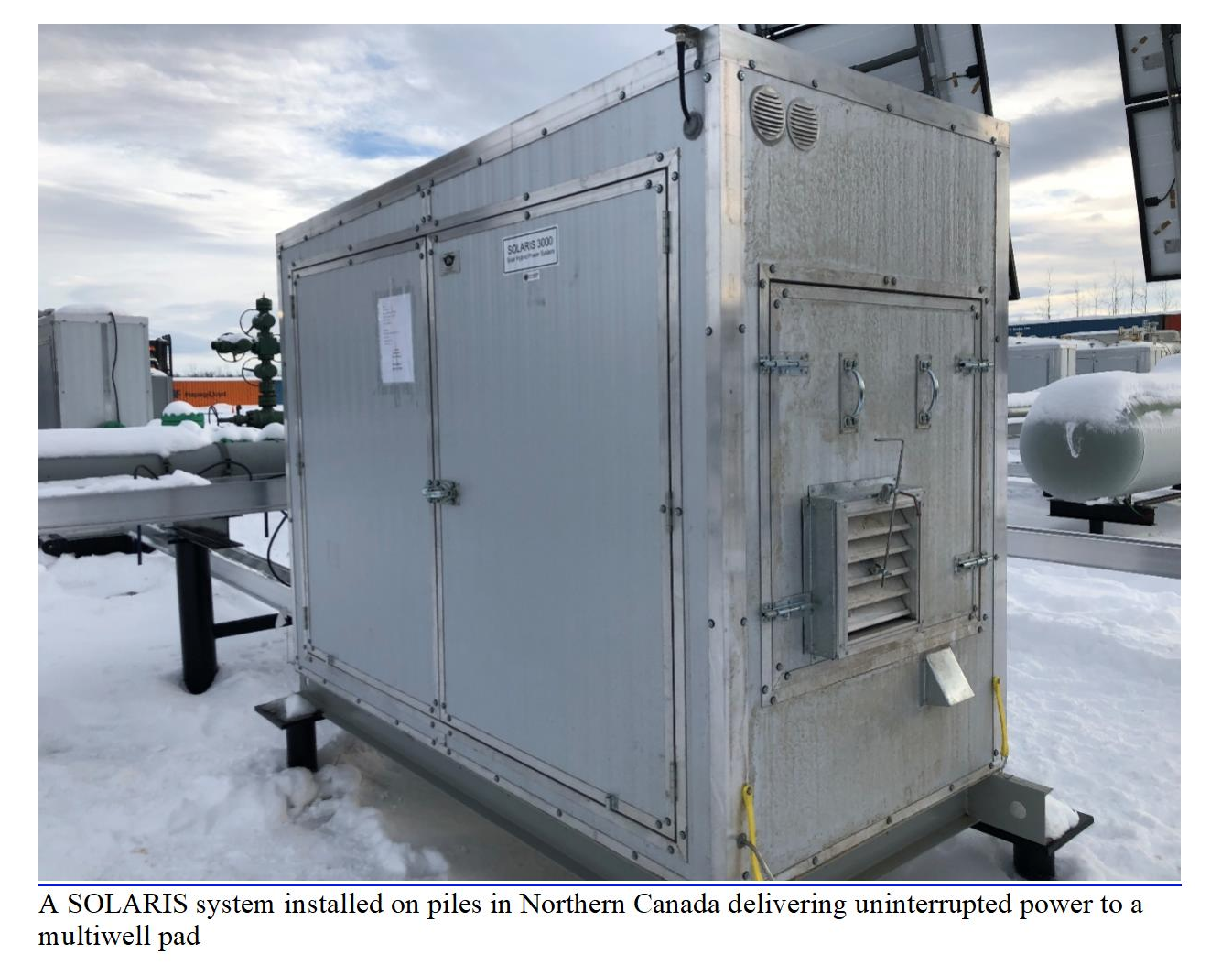

The SOLARIS 3000 Skid is designed to be mounted:
- level
- on piles
- on a rig mat
- on a concrete pad
3.0
SOLARIS 3000 is supported by SatSCADA Remote Monitoring
This is a proven and tested SCADA system supported by Calgary's SCADALink with supported installations worldwide in oilfield, mining, warehousing and retail emergency power systems
SatSCADA is a 24/7 cloud-based online monitoring portal.
Each SOLARIS 3000 skid operation will be monitored including:
SCADALink Integrated Features:
-kWh charge total
-Amp hour charge total
-battery Voltage
-heat sink temperature
-Remote Temperature Sensor (RTS)
-array Voltage
-array current- input power
-output power
Modem:
-GPS latitude and longitude
-modem temperature
-modem voltage
Further reporting:
-Device List
-Diagnostics
-MAP
-Alarm summary
-Event History
-Trends graphed and timeline customizable view for:
Power meter, including:
- Battery Voltage and Current
- Export and Import Ah
- Battery Net Ah
PV Array
Inverter
Generator
Temperatures
Solar Watts
Data use
-Demand Scan
-Export to CSV files for simplified extracion for emissions reporting
The system further provides metrics on emissions mitigation to make credit generation and emissions reporting a low-cost, painless process for the end-user.
-Help
- Further customization is available.
4.0: OPTIONS:
All SOLARIS systems are designed to allow for future modification to adapt to ever-changing site conditions such as:
-shading
-increased power requirements as facilities expand or system use data become available from SatSCADA
-extended autonomy requirements
-changing regulatory requirements and incentives
If SatSCADA data indicate improvements are warranted, the system's physical and electrical architecture is adaptable to incorporate, without major changes:
a. ONBOARD BATTERY CAPACITY FLEXIBILITY
-Upgrade options onboard battery Ah storage capacity
includes flexible battery racking
b. SOLAR GATHERING CAPACITY INCREASE/DECREASE FLEXIBILITY
- upgrade to up to 12,000 Watt solar PV generating capacity
- modular solar panel design easily adapts to adding further generating capacity
- pole mount system provides easy seasonal angle adjustment from vertical in areas prone to snow-loading to any optimal angle for warmer seasons and extended autonomy.
- panels are selected by size and capacity for handling without heavy equipment during site installation, to keep hidden costs down
- pole mount design requires less handling with less heavy equipment for a faster, lower installed cost while optimizing gathering angles over rack mounts.
c. INTEGRATION WITH RTU OR SCADA
We designed our communications interface to be adaptable to any communication system you have on site, so it is adaptable to anything from dry contact to MODBUS communications.
d. LIGHTING
- internal
- external
- lighting time […]
Overview:
SOLARIS stands for
• Solar-powered
• Off-grid
• Low temperature
• Advanced
• Reliable
• Integrated
• System
SOLARIS 3000/4000/6000/12000 is a Hybrid Powered System designed to provide 24 VDC and 120 VAC power for critical Oil, Gas, Mining, and Telecommunications Applications.
PV / Solar Panel Array:
SOLARIS systems include Solar/Photovoltaic (PV) as the Primary Power Source to charge:
- a large, expandable DC battery rack and bank (24 VDC) and,
- Solar charge regulator system to match modular architecture which adapts to solar gathering capacity, autonomy requirements, backup genset capcity & maintenance interval requirements easily, even if future growth is to be accommodated.
SOLARIS Inverter /Charger system
120/240 VAC loads is powered via the modular SOLARIS inverter system.
24 VDC Battery Bank
A modular 24VDC AGM Battery Bank provides autonomous power.
The battery bank is also modular and charged rapidly by the charger when/as solar/generator/utility power is available.
Generator
An LPG generator system to charge the battery bank during time of higher than normal power loads.
Periods of lower solar insolation such as December and January can coincide with lower temperatures, requiring greater electrical needs from heat tracing circuits.
SOLARIS is designed to run on natural gas, propane, Diesel, or gasoline, as site requires.
For ultimate reliability in remote areas, OilPro recommends the PowerGen, per https://oilpro.ca/product/powergen/
SOLARIS Monitoring and Control
SatSCADA is a 24/7 cloud-based online monitoring portal with multi-platform compatible viewing access.
This Calgary designed system is a proven, widely-adopted telemetry suite in use across 100's of retail and commercial backup power installations in North America.
1.0
SOLARIS 3000 enclosure and Heavy Duty skid base
All equipment is housed in a rugged 8'L x 4'W and 6'H custom skid on C6 Channel.
Enclosure includes:
Battery rack (with expansion options)
Integrated gas or electric heating system matched to enclosure heat and venting requirements.
Adjustable, weatherproof HVAC system to accommodate:
- air exchanges for generator
- ventilation for electrical components and charging system
- humidity control
- incorporates snow & animal ingress proofing
2.0
Skid:
- 4 integrated lifting lugs
- 4 access doors
- 1 access panel
- sloped roof for snow shedding
- Junction boxes
Energy-conserving HVAC design to ensure environment is optimized for charging and cold starts
The SOLARIS 3000 Skid is designed to be mounted:
- level
- on piles
- on a rig mat
- on a concrete pad
3.0
SOLARIS 3000 is supported by SatSCADA Remote Monitoring
This is a proven and tested SCADA system supported by Calgary's SCADALink with supported installations worldwide in oilfield, mining, warehousing and retail emergency power systems
SatSCADA is a 24/7 cloud-based online monitoring portal.
Each SOLARIS 3000 skid operation will be monitored including:
SCADALink Integrated Features:
-kWh charge total
-Amp hour charge total
-battery Voltage
-heat sink temperature
-Remote Temperature Sensor (RTS)
-array Voltage
-array current- input power
-output power
Modem:
-GPS latitude and longitude
-modem temperature
-modem voltage
Further reporting:
-Device List
-Diagnostics
-MAP
-Alarm summary
-Event History
-Trends graphed and timeline customizable view for:
Power meter, including:
- Battery Voltage and Current
- Export and Import Ah
- Battery Net Ah
PV Array
Inverter
Generator
Temperatures
Solar Watts
Data use
-Demand Scan
-Export to CSV files for simplified extracion for emissions reporting
The system further provides metrics on emissions mitigation to make credit generation and emissions reporting a low-cost, painless process for the end-user.
-Help
- Further customization is available.
4.0: OPTIONS:
All SOLARIS systems are designed to allow for future modification to adapt to ever-changing site conditions such as:
-shading
-increased power requirements as facilities expand or system use data become available from SatSCADA
-extended autonomy requirements
-changing regulatory requirements and incentives
If SatSCADA data indicate improvements are warranted, the system's physical and electrical architecture is adaptable to incorporate, without major changes:
a. ONBOARD BATTERY CAPACITY FLEXIBILITY
-Upgrade options onboard battery Ah storage capacity
includes flexible battery racking
b. SOLAR GATHERING CAPACITY INCREASE/DECREASE FLEXIBILITY
- upgrade to up to 12,000 Watt solar PV generating capacity
- modular solar panel design easily adapts to adding further generating capacity
- pole mount system provides easy seasonal angle adjustment from vertical in areas prone to snow-loading to any optimal angle for warmer seasons and extended autonomy.
- panels are selected by size and capacity for handling without heavy equipment during site installation, to keep hidden costs down
- pole mount design requires less handling with less heavy equipment for a faster, lower installed cost while optimizing gathering angles over rack mounts.
c. INTEGRATION WITH RTU OR SCADA
We designed our communications interface to be adaptable to any communication system you have on site, so it is adaptable to anything from dry contact to MODBUS communications.
d. LIGHTING
- internal
- external
- lighting time
SOLARIS stands for
• Solar-powered
• Off-grid
• Low temperature
• Advanced
• Reliable
• Integrated
• System
SOLARIS 3000/4000/6000/12000 is a Hybrid Powered System designed to provide 24 VDC and 120 VAC power for critical Oil, Gas, Mining, and Telecommunications Applications.
PV / Solar Panel Array:
SOLARIS systems include Solar/Photovoltaic (PV) as the Primary Power Source to charge:
- a large, expandable DC battery rack and bank (24 VDC) and,
- Solar charge regulator system to match modular architecture which adapts to solar gathering capacity, autonomy requirements, backup genset capcity & maintenance interval requirements easily, even if future growth is to be accommodated.
SOLARIS Inverter /Charger system
120/240 VAC loads is powered via the modular SOLARIS inverter system.
24 VDC Battery Bank
A modular 24VDC AGM Battery Bank provides autonomous power.
The battery bank is also modular and charged rapidly by the charger when/as solar/generator/utility power is available.
Generator
An LPG generator system to charge the battery bank during time of higher than normal power loads.
Periods of lower solar insolation such as December and January can coincide with lower temperatures, requiring greater electrical needs from heat tracing circuits.
SOLARIS is designed to run on natural gas, propane, Diesel, or gasoline, as site requires.
For ultimate reliability in remote areas, OilPro recommends the PowerGen, per https://oilpro.ca/product/powergen/
SOLARIS Monitoring and Control
SatSCADA is a 24/7 cloud-based online monitoring portal with multi-platform compatible viewing access.
This Calgary designed system is a proven, widely-adopted telemetry suite in use across 100's of retail and commercial backup power installations in North America.
1.0
SOLARIS 3000 enclosure and Heavy Duty skid base
All equipment is housed in a rugged 8'L x 4'W and 6'H custom skid on C6 Channel.
Enclosure includes:
Battery rack (with expansion options)
Integrated gas or electric heating system matched to enclosure heat and venting requirements.
Adjustable, weatherproof HVAC system to accommodate:
- air exchanges for generator
- ventilation for electrical components and charging system
- humidity control
- incorporates snow & animal ingress proofing
2.0
Skid:
- 4 integrated lifting lugs
- 4 access doors
- 1 access panel
- sloped roof for snow shedding
- Junction boxes
Energy-conserving HVAC design to ensure environment is optimized for charging and cold starts
The SOLARIS 3000 Skid is designed to be mounted:
- level
- on piles
- on a rig mat
- on a concrete pad
3.0
SOLARIS 3000 is supported by SatSCADA Remote Monitoring
This is a proven and tested SCADA system supported by Calgary's SCADALink with supported installations worldwide in oilfield, mining, warehousing and retail emergency power systems
SatSCADA is a 24/7 cloud-based online monitoring portal.
Each SOLARIS 3000 skid operation will be monitored including:
SCADALink Integrated Features:
-kWh charge total
-Amp hour charge total
-battery Voltage
-heat sink temperature
-Remote Temperature Sensor (RTS)
-array Voltage
-array current- input power
-output power
Modem:
-GPS latitude and longitude
-modem temperature
-modem voltage
Further reporting:
-Device List
-Diagnostics
-MAP
-Alarm summary
-Event History
-Trends graphed and timeline customizable view for:
Power meter, including:
- Battery Voltage and Current
- Export and Import Ah
- Battery Net Ah
PV Array
Inverter
Generator
Temperatures
Solar Watts
Data use
-Demand Scan
-Export to CSV files for simplified extracion for emissions reporting
The system further provides metrics on emissions mitigation to make credit generation and emissions reporting a low-cost, painless process for the end-user.
-Help
- Further customization is available.
4.0: OPTIONS:
All SOLARIS systems are designed to allow for future modification to adapt to ever-changing site conditions such as:
-shading
-increased power requirements as facilities expand or system use data become available from SatSCADA
-extended autonomy requirements
-changing regulatory requirements and incentives
If SatSCADA data indicate improvements are warranted, the system's physical and electrical architecture is adaptable to incorporate, without major changes:
a. ONBOARD BATTERY CAPACITY FLEXIBILITY
-Upgrade options onboard battery Ah storage capacity
includes flexible battery racking
b. SOLAR GATHERING CAPACITY INCREASE/DECREASE FLEXIBILITY
- upgrade to up to 12,000 Watt solar PV generating capacity
- modular solar panel design easily adapts to adding further generating capacity
- pole mount system provides easy seasonal angle adjustment from vertical in areas prone to snow-loading to any optimal angle for warmer seasons and extended autonomy.
- panels are selected by size and capacity for handling without heavy equipment during site installation, to keep hidden costs down
- pole mount design requires less handling with less heavy equipment for a faster, lower installed cost while optimizing gathering angles over rack mounts.
c. INTEGRATION WITH RTU OR SCADA
We designed our communications interface to be adaptable to any communication system you have on site, so it is adaptable to anything from dry contact to MODBUS communications.
d. LIGHTING
- internal
- external
- lighting time
Blog
Prime Power for Telecom with Reliable Propane Delivery
We are excited to get this message from OilPro’s …
Contact
Back to top
