SOLARIS-3000W-800AH-SCADA-SOLAR HYBRID
Overview:
SOLARIS stands for
• Solar-powered
• Off-grid
• Low temperature
• Advanced
• Reliable
• Integrated
•ARIS 3000/4000/6000/12000 is a Hybrid Powered System designed to provide 24 VDC and 120 VAC power for critical Oil, Gas, Mining, and Telecommunications Applications.
PV / Solar Panel Array:
SOLARIS systems include Solar/Photovoltaic (PV) as the Primary Power Source to charge:
- a large, expandable DC battery rack and bank (24 VDC) and,
- Solar charge regulator system to match modular architecture which adapts to solar gathering capacity, autonomy requirements, backup genset capcity & maintenance interval requirements easily, even if future growth is to be accommodated.
SOLARIS Inverter /Charger system
120/240 VAC loads is powered via the modular SOLARIS inverter system.
24 VDC Battery Bank
A modular 24VDC AGM Battery Bank provides autonomous power.
The battery bank is also modular and charged rapidly by the charger when/as solar/generator/utility power is available.
Generator
An LPG generator system to charge the battery bank during time of higher than normal power loads.
Periods of lower solar insolation such as December and January can coincide with lower temperatures, requiring greater electrical needs from heat tracing circuits.
SOLARIS is designed to run on natural gas, propane, Diesel, or gasoline, as site requires.
For ultimate reliability in remote areas, OilPro recommends the PowerGen, per https://oilpro.ca/product/powergen/
SOLARIS Monitoring and Control
SatSCADA is a 24/7 cloud-based online monitoring portal with multi-platform compatible viewing access.
This Calgary designed system is a proven, widely-adopted telemetry suite in use across 100's of retail and commercial backup power installations in North America.
1.0

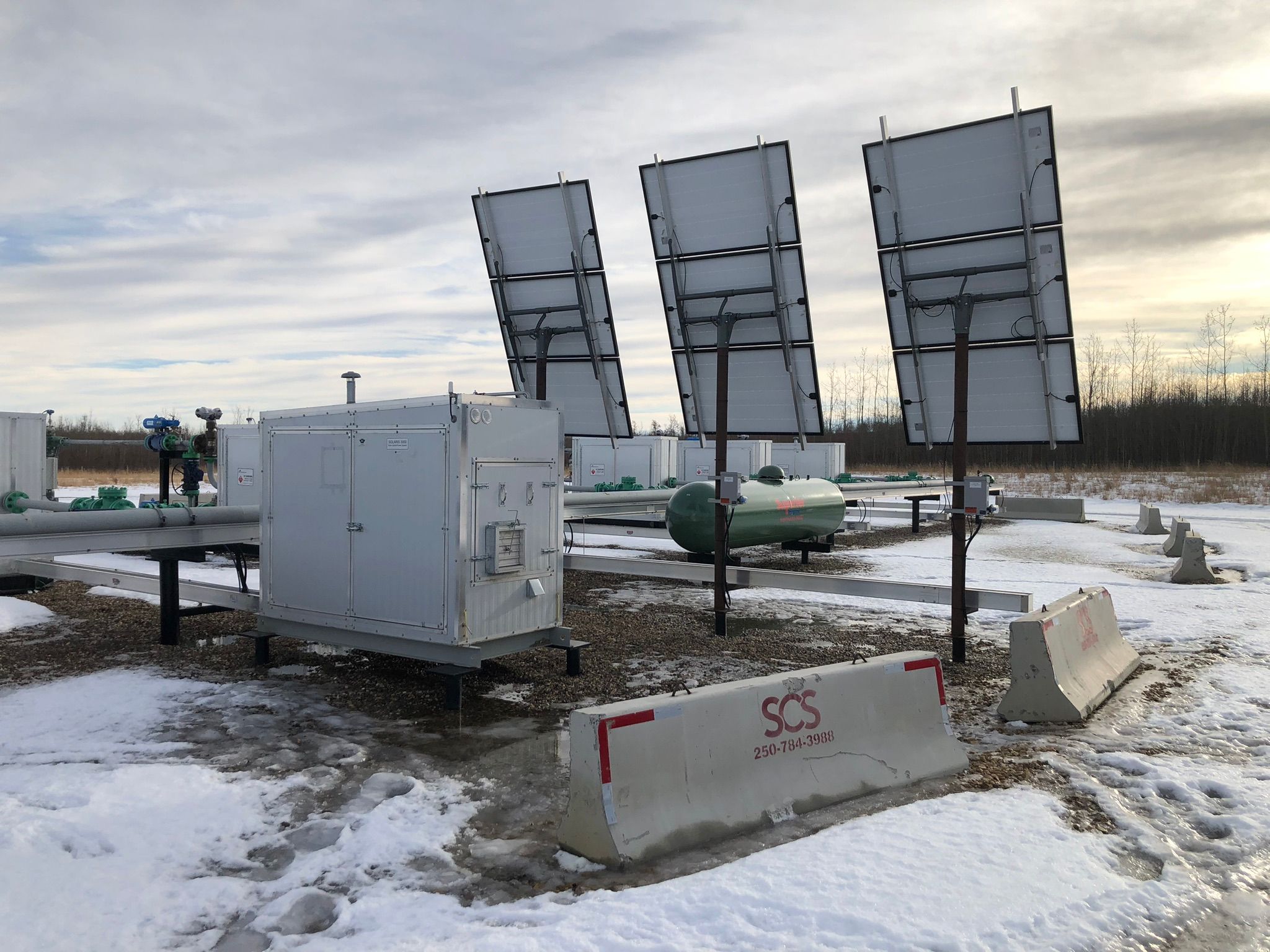

SOLARIS 3000 enclosure and Heavy Duty skid base
All equipment is housed in a rugged 8'L x 4'W and 6'H custom skid on C6 Channel.
Enclosure includes:
Battery rack (with expansion options)
Integrated gas or electric heating system matched to enclosure heat and venting requirements.
Adjustable, weatherproof HVAC system to accommodate:
- air exchanges for generator
- ventilation for electrical components and charging system
- humidity control
- incorporates snow & animal ingress proofing
2.0
Skid:
- 4 integrated lifting lugs
- 4 access doors
- 1 access panel
- sloped roof for snow shedding
- Junction boxes
Energy-conserving HVAC design to ensure environment is optimized for charging and cold starts
The SOLARIS 3000 Skid is designed to be mounted:
- level
- on piles
- on a rig mat
- on a concrete pad
3.0
SOLARIS 3000 is supported by SatSCADA Remote Monitoring
This is a proven and tested SCADA system supported by Calgary's SCADALink with supported installations worldwide in oilfield, mining, warehousing and retail emergency power systems
SatSCADA is a 24/7 cloud-based online monitoring portal.
Each SOLARIS 3000 skid operation will be monitored including:
SCADALink Integrated Features:
-kWh charge total
-Amp hour charge total
-battery Voltage
-heat sink temperature
-Remote Temperature Sensor (RTS)
-array Voltage
-array current- input power
-output power
Modem:
-GPS latitude and longitude
-modem temperature
-modem voltage
Further reporting:
-Device List
-Diagnostics
-MAP
-Alarm summary
-Event History
-Trends graphed and timeline customizable view for:
Power meter, including:
- Battery Voltage and Current
- Export and Import Ah
- Battery Net Ah
PV Array
Inverter
Generator
Temperatures
Solar Watts
Data use
-Demand Scan
-Export to CSV files for simplified extracion for emissions reporting
The system further provides metrics on emissions mitigation to make credit generation and emissions reporting a low-cost, painless process for the end-user.
-Help
- Further customization is available.
4.0: OPTIONS:
All SOLARIS systems are designed to allow for future modification to adapt to ever-changing site conditions such as:
-shading
-increased power requirements as facilities expand or system use data become available from SatSCADA
-extended autonomy requirements
-changing regulatory requirements and incentives
If SatSCADA data indicate improvements are warranted, the system's physical and electrical architecture is adaptable to incorporate, without major changes:
a. ONBOARD BATTERY CAPACITY FLEXIBILITY
-Upgrade options onboard battery Ah storage capacity
includes flexible battery racking
b. SOLAR GATHERING CAPACITY INCREASE/DECREASE FLEXIBILITY
- upgrade to up to 12,000 Watt solar PV generating capacity
- modular solar panel design easily adapts to adding further generating capacity
- pole mount system provides easy seasonal angle adjustment from vertical in areas prone to snow-loading to any optimal angle for warmer seasons and extended autonomy.
- panels are selected by size and capacity for handling without heavy equipment during site installation, to keep hidden costs down
- pole mount design requires less handling with less heavy equipment for a faster, lower installed cost while optimizing gathering angles over rack mounts.
c. INTEGRATION WITH RTU OR SCADA
We designed our communications interface to be adaptable to any communication system you have on site, so it is adaptable to anything from dry contact to MODBUS communications.
d. LIGHTING
- internal
- external
- lighting time […]
